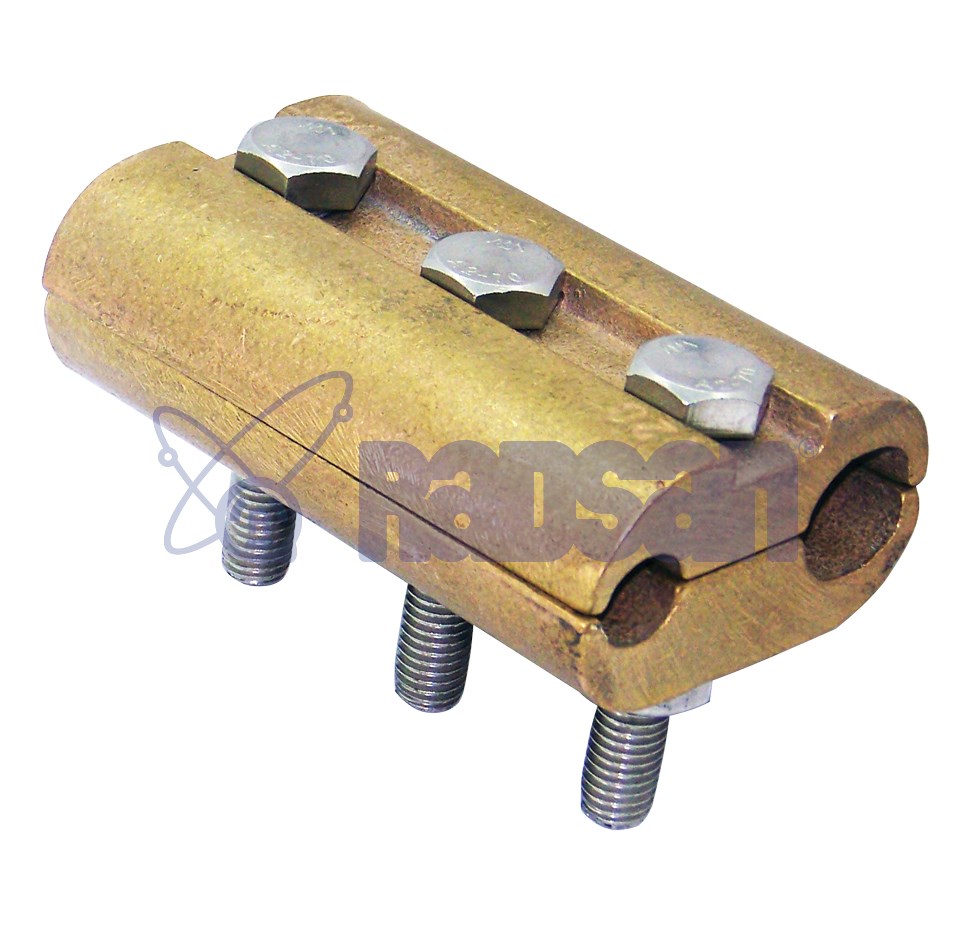

Topraklama Bağlantı Elemanları

Kod	Malzeme/Kaplama	Civata	A Kesit	B Kesit	Ebat
TDK.501.01	F - S	DC+NC	16 mm²	16 mm²	54 x 30 x 17 mm
TDK.501.02	F - S	DC+NC	25 mm²	16 mm²	57 x 35 x 17 mm
TDK.501.03	F - S	DC+NC	25 mm²	25 mm²	57 x 35 x 17 mm
TDK.501.04	F - S	DC+NC	35 mm²	16 mm²	57 x 38 x 17 mm
TDK.501.05	F - S	DC+NC	35 mm²	25 mm²	57 x 38 x 17 mm
TDK.501.06	F - S	DC+NC	35 mm²	35 mm²	57 x 38 x 17 mm
TDK.501.07	F - S	DC+NC	50 mm²	16 mm²	67 x 41 x 22 mm
TDK.501.08	F - S	DC+NC	50 mm²	25 mm²	67 x 41 x 22 mm
TDK.501.09	F - S	DC+NC	50 mm²	35 mm²	67 x 41 x 22 mm
TDK.501.10	F - S	DC+NC	50 mm²	50 mm²	76 x 48 x 22 mm
TDK.501.11	F - S	DC+NC	70 mm²	16 mm²	76 x 48 x 22 mm
TDK.501.12	F - S	DC+NC	70 mm²	25 mm²	76 x 48 x 22 mm
TDK.501.13	F - S	DC+NC	70 mm²	35 mm²	76 x 48 x 22 mm
TDK.501.14	F - S	DC+NC	70 mm²	50 mm²	76 x 48 x 22 mm
TDK.501.15	F - S	DC+NC	70 mm²	70 mm²	76 x 48 x 22 mm
TDK.501.16	F - S	DC+NC	95 mm²	16 mm²	76 x 52 x 27 mm
TDK.501.17	F - S	DC+NC	95 mm²	25 mm²	76 x 52 x 27 mm
TDK.501.18	F - S	DC+NC	95 mm²	35 mm²	76 x 52 x 27 mm
TDK.501.19	F - S	DC+NC	95 mm²	50 mm²	76 x 52 x 27 mm
TDK.501.20	F - S	DC+NC	95 mm²	70 mm²	76 x 52 x 27 mm
TDK.501.21	F - S	DC+NC	95 mm²	95 mm²	102 x 57 x 27 mm
TDK.501.22	F - S	DC+NC	120 mm²	16 mm²	76 x 52 x 27 mm
TDK.501.23	F - S	DC+NC	120 mm²	25 mm²	76 x 52 x 27 mm
TDK.501.24	F - S	DC+NC	120 mm²	35 mm²	76 x 52 x 27 mm
TDK.501.25	F - S	DC+NC	120 mm²	50 mm²	76 x 52 x 27 mm
TDK.501.26	F - S	DC+NC	120 mm²	70 mm²	76 x 52 x 27 mm
TDK.501.27	F - S	DC+NC	120 mm²	95 mm²	76 x 52 x 27 mm
TDK.501.28	F - S	DC+NC	120 mm²	120 mm²	102 x 57 x 27 mm
TDK.501.29	F - S	DC+NC	150 mm²	16 mm²	76 x 52 x 27 mm
TDK.501.30	F - S	DC+NC	150 mm²	25 mm²	76 x 52 x 27 mm
TDK.501.31	F - S	DC+NC	150 mm²	35 mm²	76 x 52 x 27 mm
TDK.501.32	F - S	DC+NC	150 mm²	50 mm²	76 x 52 x 27 mm
TDK.501.33	F - S	DC+NC	150 mm²	70 mm²	76 x 52 x 27 mm
TDK.501.34	F - S	DC+NC	150 mm²	95 mm²	76 x 52 x 27 mm
TDK.501.35	F - S	DC+NC	150 mm²	120 mm²	76 x 52 x 27 mm
TDK.501.36	F - S	DC+NC	150 mm²	150 mm²	102 x 57 x 27 mm
TDK.501.37	F - S	DC+NC	185 mm²	50 mm²	76 x 64 x 33 mm
TDK.501.38	F - S	DC+NC	185 mm²	70 mm²	76 x 64 x 33 mm
TDK.501.39	F - S	DC+NC	185 mm²	95 mm²	102 x 64 x 33 mm
TDK.501.40	F - S	DC+NC	185 mm²	120 mm²	102 x 64 x 33 mm
TDK.501.41	F - S	DC+NC	185 mm²	150 mm²	102 x 64 x 33 mm
TDK.501.42	F - S	DC+NC	185 mm²	185 mm²	102 x 64 x 33 mm
TDK.501.43	F - S	DC+NC	240 mm²	50 mm²	76 x 64 x 33 mm
TDK.501.44	F - S	DC+NC	240 mm²	70 mm²	76 x 64 x 33 mm
TDK.501.45	F - S	DC+NC	240 mm²	95 mm²	76 x 64 x 33 mm
TDK.501.46	F - S	DC+NC	240 mm²	120 mm²	102 x 64 x 33 mm
TDK.501.47	F - S	DC+NC	240 mm²	150 mm²	102 x 64 x 33 mm
TDK.501.48	F - S	DC+NC	240 mm²	185 mm²	102 x 64 x 33 mm
TDK.501.49	F - S	DC+NC	240 mm²	240 mm²	102 x 64 x 33 mm

Kod Açıklaması
Ana Meteryal A=Alüminyum B=Bakır D=Demir-Çelik F=Bronz G=Pik Döküm N=Paslanmaz P=Plastik S=Prinç	Kaplama 1=El. Galvaniz 2=Sıcak Galvaniz 3=El. Bakır 4=Elektro Kalay 5=El. Krom-Nikel 6=Siyah İzalasyon 7=Sarı-Yeşil İzalasyon	Cıvata-Somun DC=Galvaniz NC=Paslanmaz SC=Prinç
